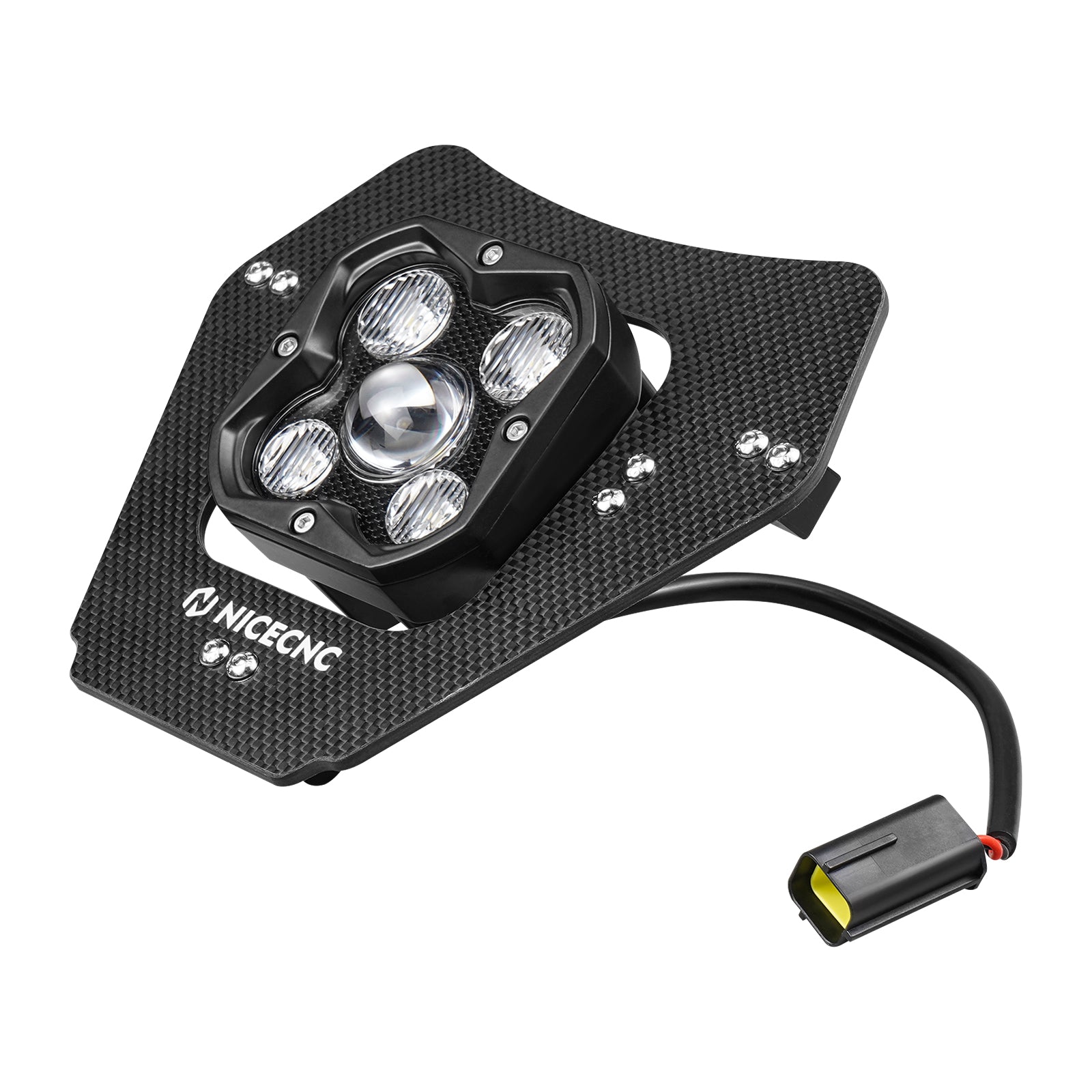

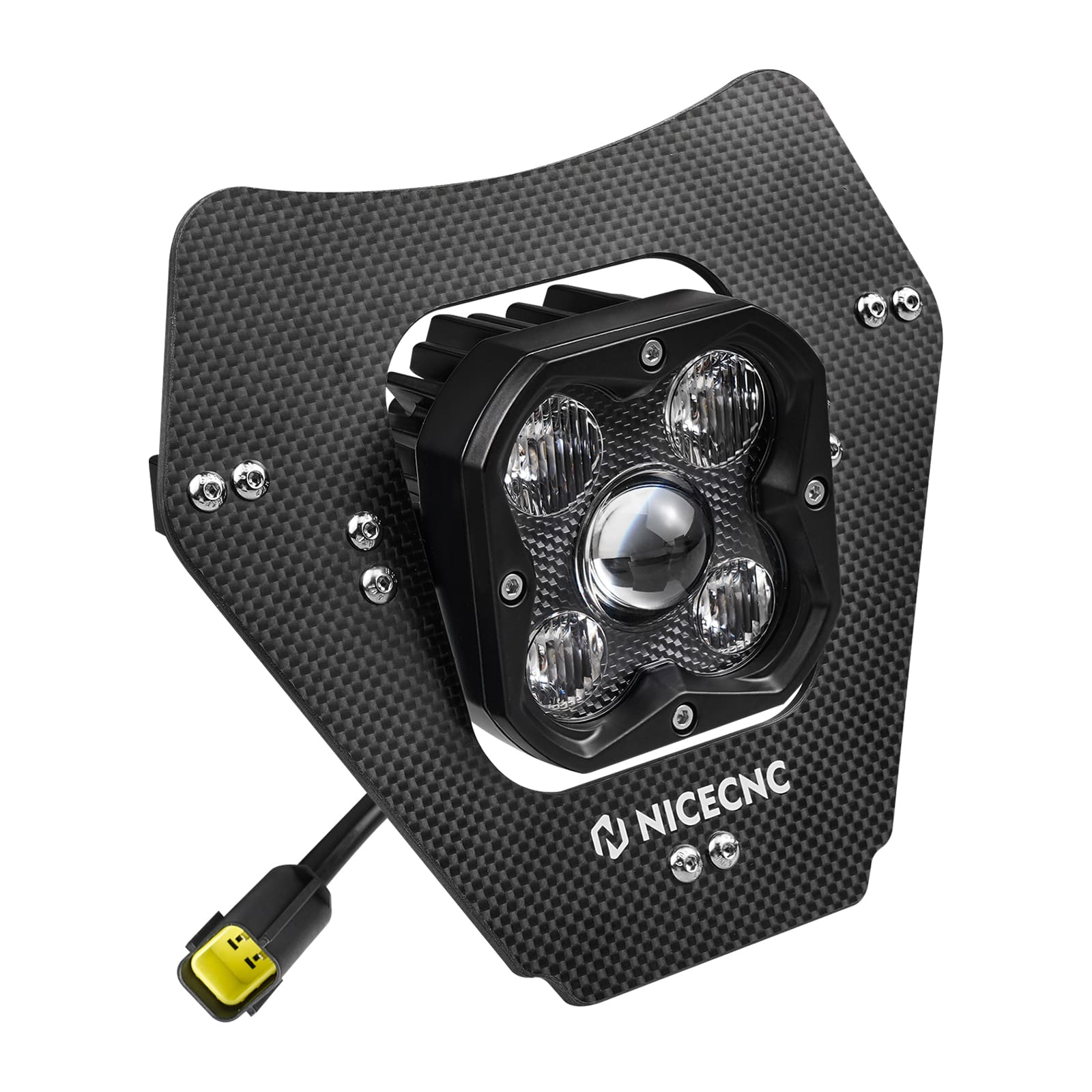

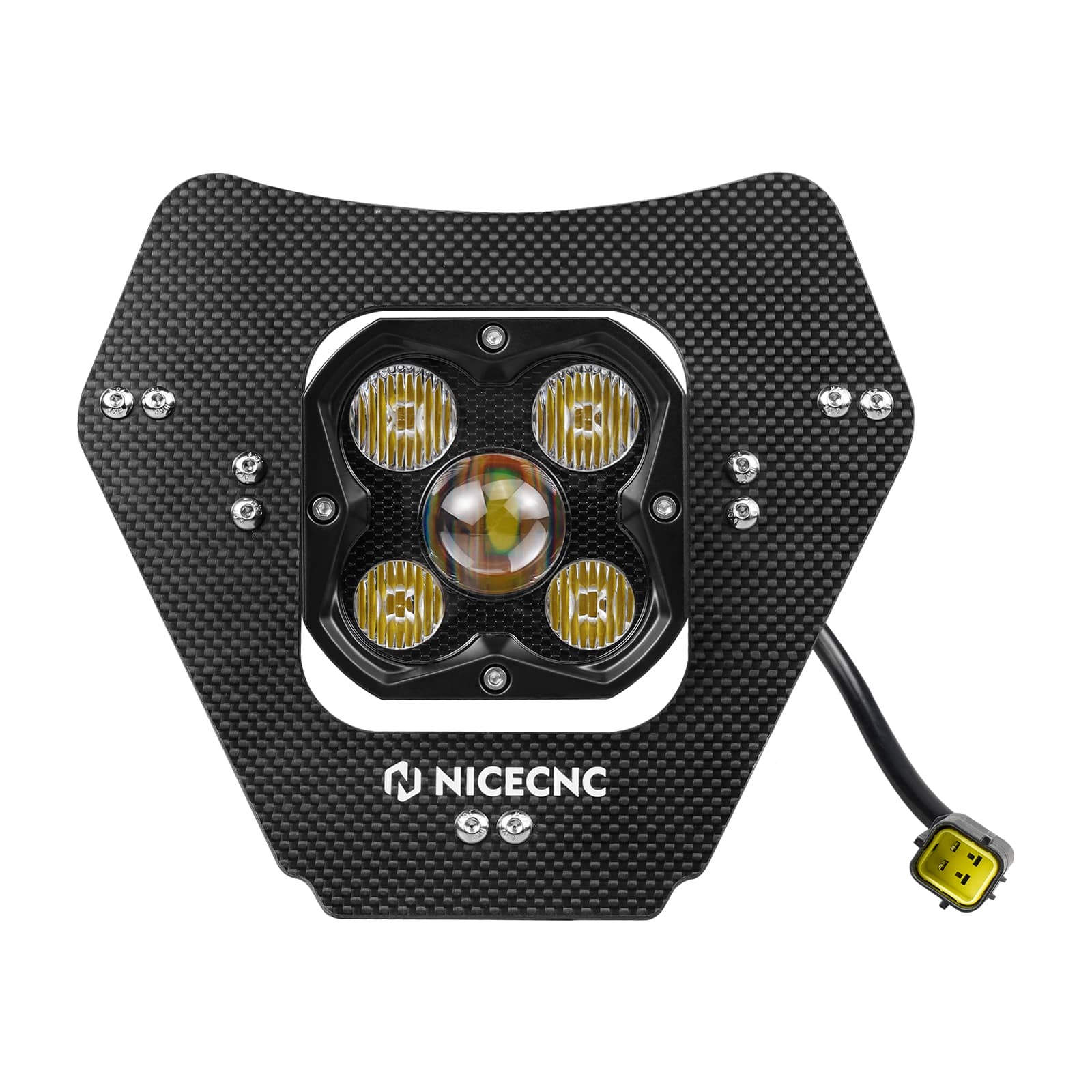

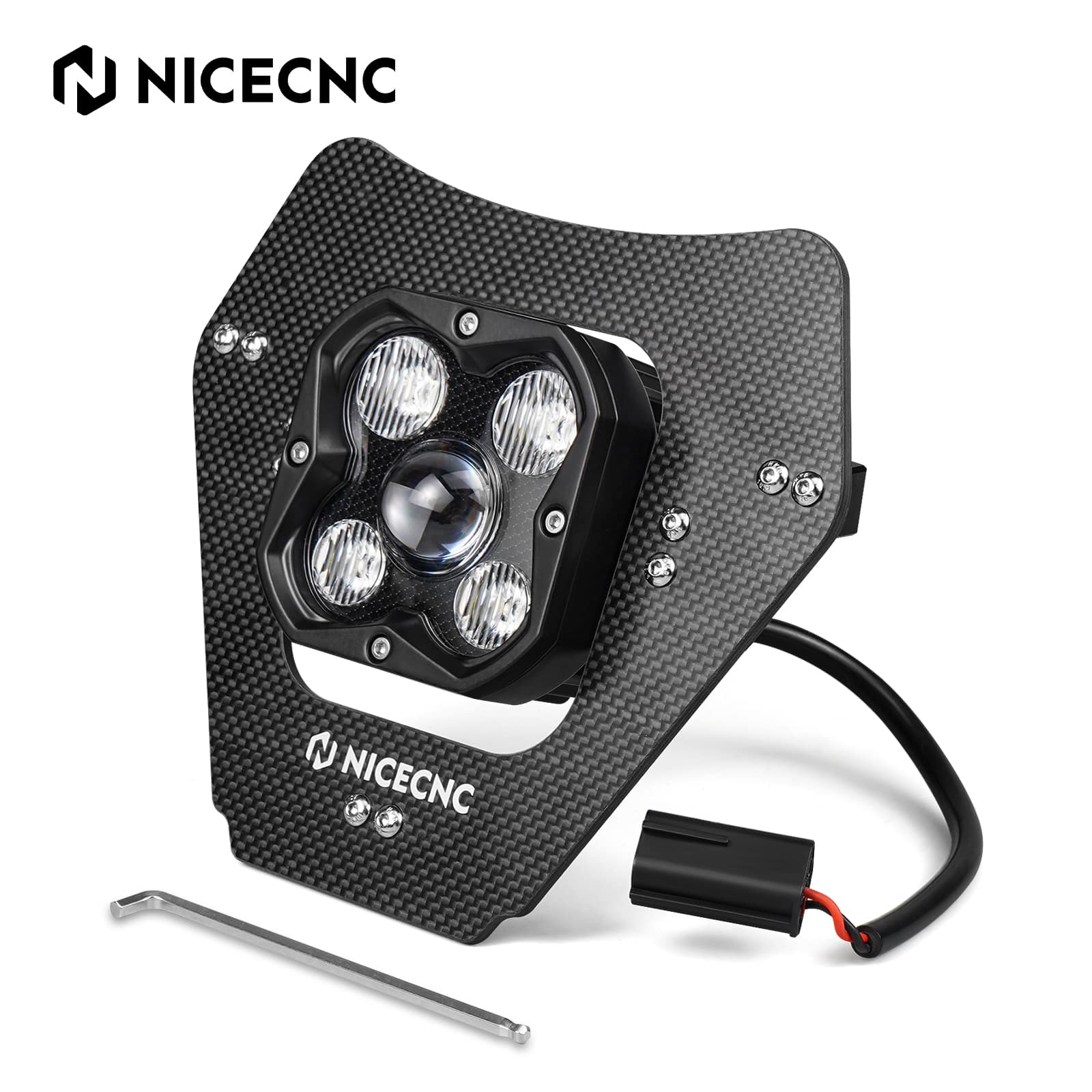

LED Lamp Headlight Kit For KTM 150-500 EXC / EXC-F / XC-W / XCF-W / XW-F 2024-2025
Rally Headlight Kit — High-Efficiency Lighting, Easy Fit, The Ideal Choice for Off-Road Riding
Features:
-

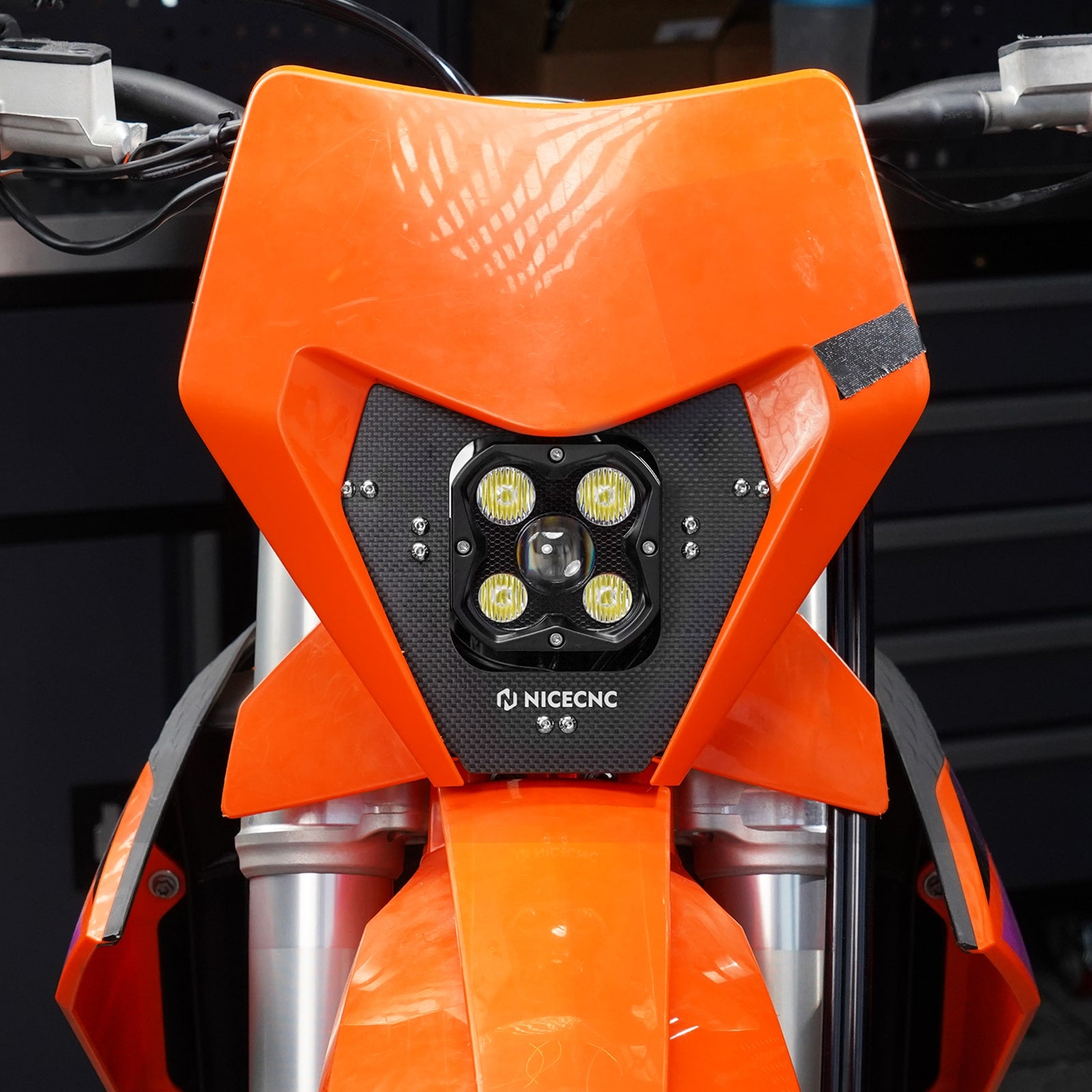

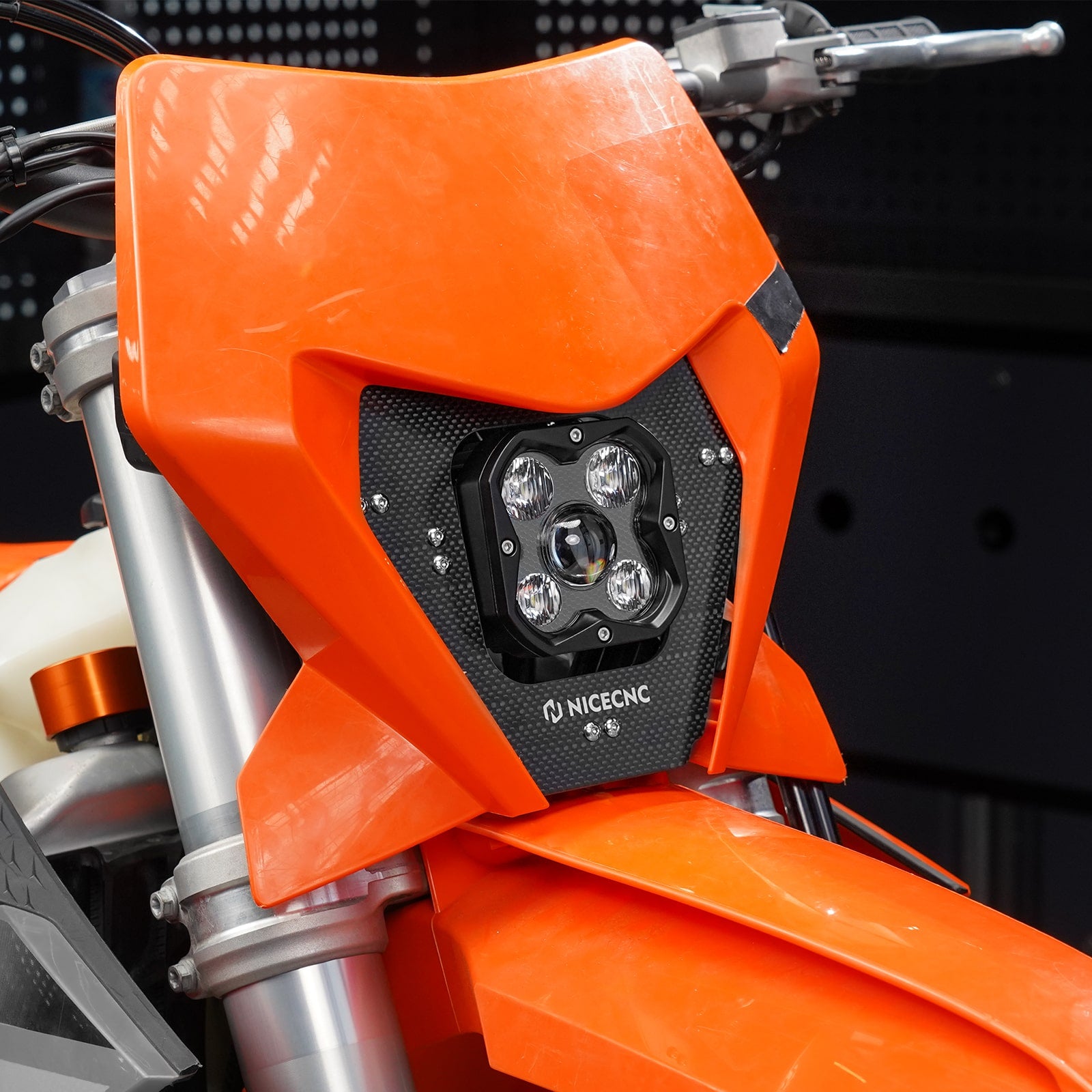

3D Scanning, Original Fit
The kit uses 3D scanning technology to ensure a perfect fit with your bike's original headlight covers. Installation is easy and requires no modification, maintaining the original appearance of your bike while significantly improving lighting performance. -
Adjustable angle to suit various terrains and riding styles
The headlight supports height adjustment and can be precisely adjusted according to the rider's needs and different terrains, providing the ideal lighting angle for both high-speed straight sprints and complex off-road sections. -

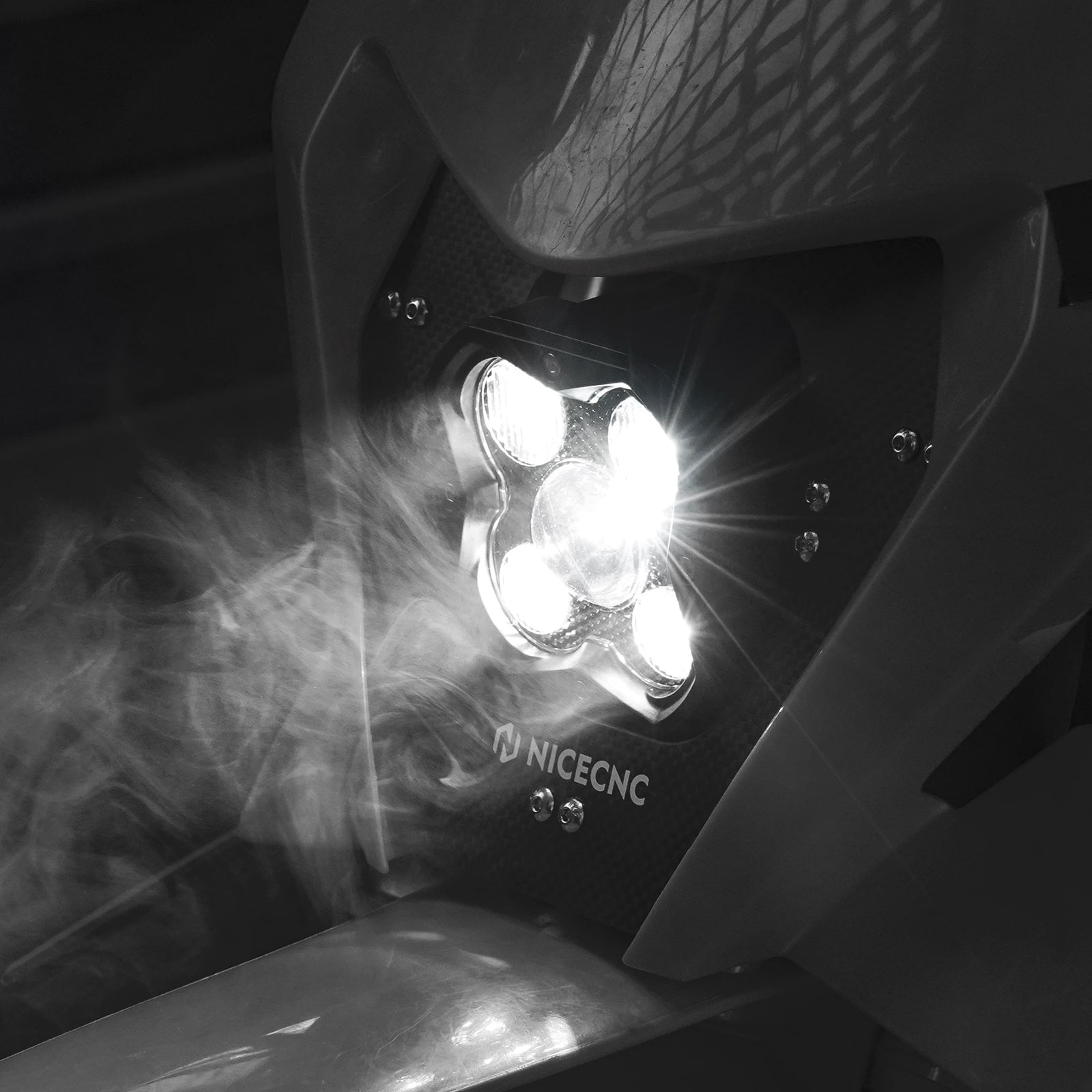

Integrated high and low beams for uniform and efficient lighting
The integrated design combines focused and diffused lighting, combining the penetrating power of high beams with the wide illumination of low beams to ensure a wide and clear field of vision when riding at night.
Note:
Please note that the headlight does not have a high/low beam switch function, but the lights can still be turned on and off using the original handlebar high/low switch.

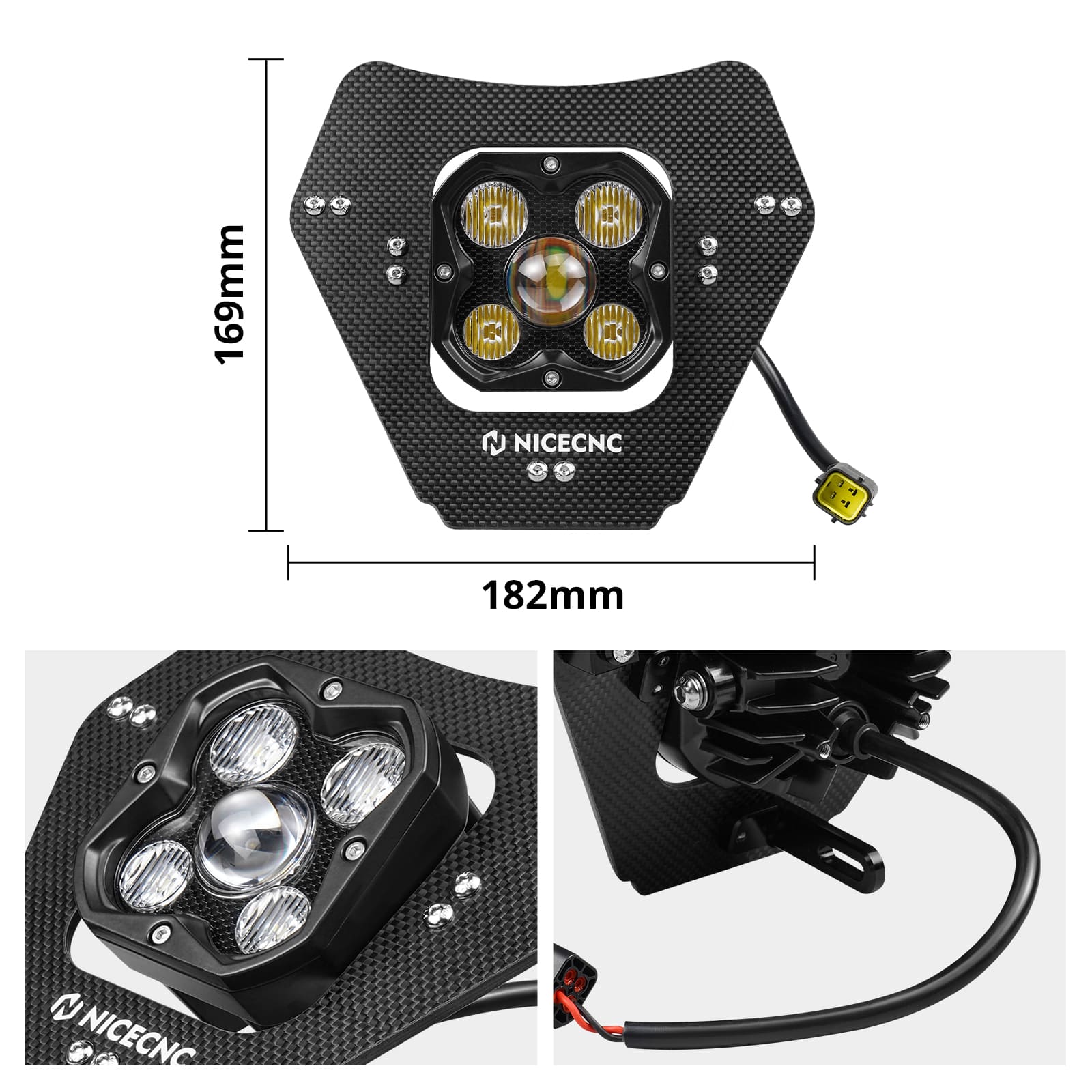

3" LED Light Parameters
- Brand: NICECNC
- Wattage: 28W
- Brightness: 3,500 lumens
- Color Temperature: 6,000K (close to natural daylight, high clarity at night)
- Chip: High-quality chip, stable brightness, reliable performance

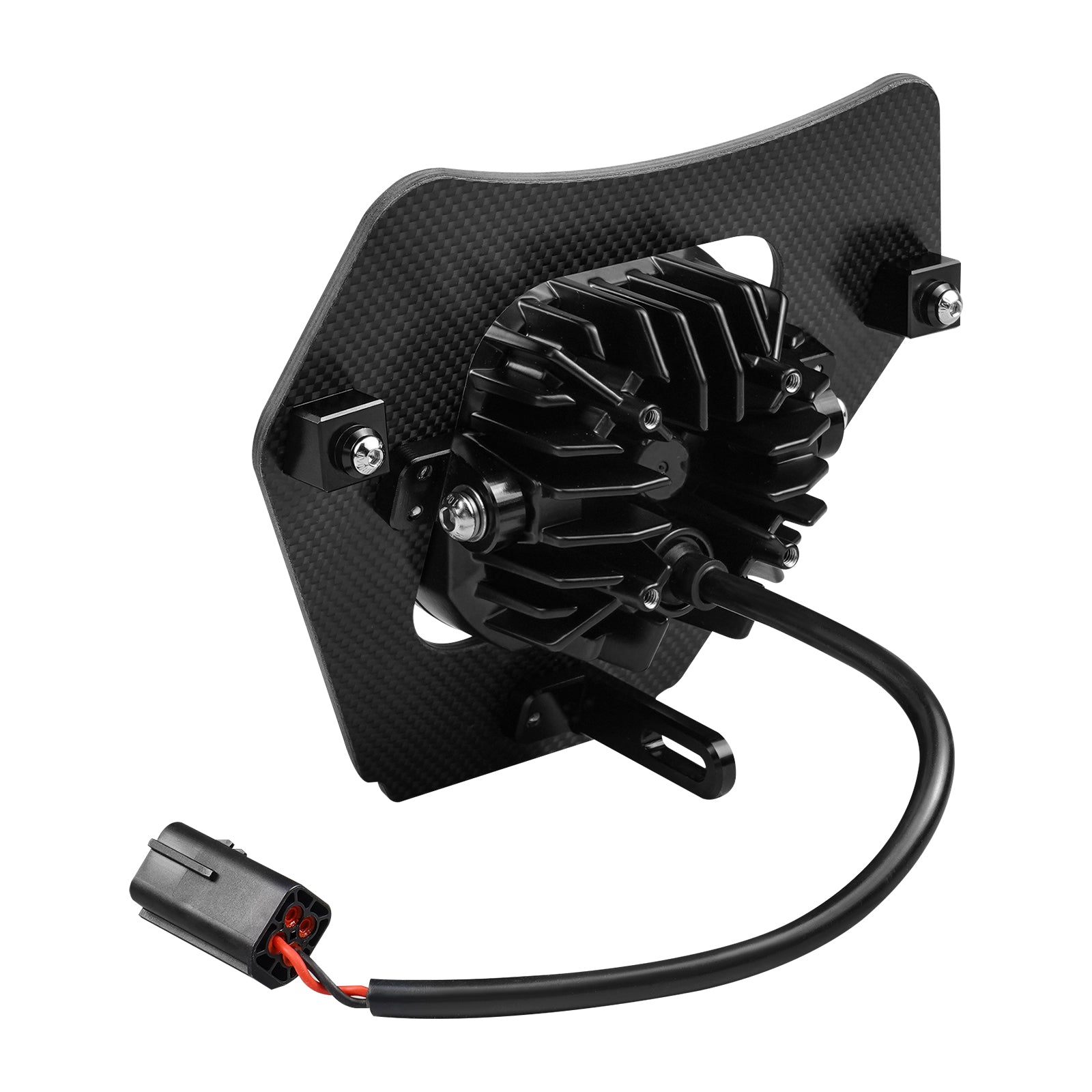

- Housing Material: Powder-coated cast aluminum + carbon fiber panel, durable and impact-resistant
- Waterproof Rating: IP67, dustproof and waterproof, suitable for harsh environments
- Operating Voltage: 12-30V DC, compatible with various power systems
- LED Life Expectancy: Estimated to last up to 50,000 hours
- Certifications: ECE R10
Easy installation, quick start-up
This kit features a plug-and-play design for quick and easy installation:
1. Remove the original headlights: Use basic tools to remove the original headlights from the vehicle.
2. Install the new headlights: Secure the kit inside the headlight housing and complete the installation using the included hardware.
3. Connect the power supply: Connect the headlights to the vehicle's power supply, compatible with 12-30V DC voltage, and ensure a secure connection.
4. Adjust the angle: Adjust the headlight angle according to riding needs to ensure an optimal lighting range.
5. The headlight does not have a high/low beam switch function, but the lights can still be turned on and off using the original handlebar high/low switch.
6. Product Wiring Instructions:
Before installation, carefully verify the pin sequence and wire colors of the original female terminal housing (OEM wiring) and adjust the wiring of this kit accordingly to avoid connection errors that could cause malfunction.
Original Headlight Unit Wiring (taking EXC/XCW as an example, OEM wire colors):
Pin 1 – Green (gn) – PL (Parking/Position Light)
Pin 2 – Green (gn) – LO (Low Beam)
Pin 3 – Blue (BU) – HI (High Beam) only equipped on EXC models, XCW does not have this line
Pin 4 – Brown (br) – GND (Ground)
The product’s black wire corresponds to pin 4 (Brown, GND).
The product’s red wire should be connected to either pin 2 (Green, Low Beam) or pin 3 (Blue, High Beam).
If the model is XCW, it must be connected to pin 2 (Low Beam).
If the model is EXC, connection to low beam or high beam can be chosen as needed.
If you don’t know how to remove the terminal pins, please contact customer service for a video.
Compatibility Note:
- XC, XC-F, TX, and FX models do not support direct installation because these models do not come equipped with headlights or switches from the factory. If installing this kit on such models, additional plastic headlight covers and traditional 12V wiring harnesses are required.
- Before purchasing or installing additional lighting equipment, please confirm that the vehicle has sufficient power output and is equipped with a 12V battery.
- For off-road use only; this light kit is designed specifically for off-road riding and is not suitable for use on public roads. Please use within the bounds of the law.
Package Included:
1X LED Headlight Kit
Fitment:
For KTM 150-500 EXC/EXCF/XCW/XCF-W/XW-F 2024-2025
Disclaimer:
Nicecnc parts are not sponsored or endorsed by, or affiliated with the brands its parts fit, including KTM, Husqvarna, Honda, Yamaha, Kawasaki, Suzuki, Beta, GASGAS, Sherco, etc.
