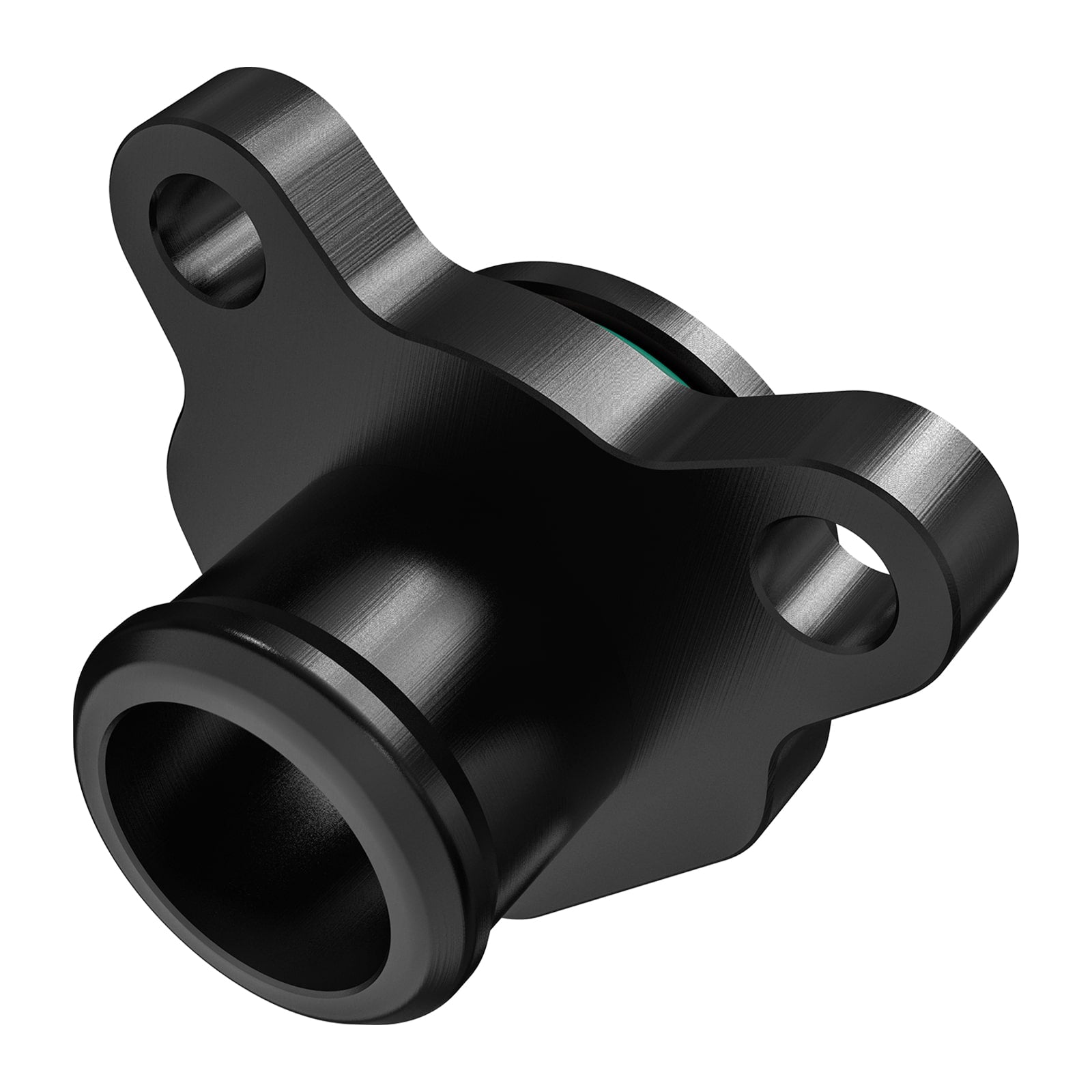

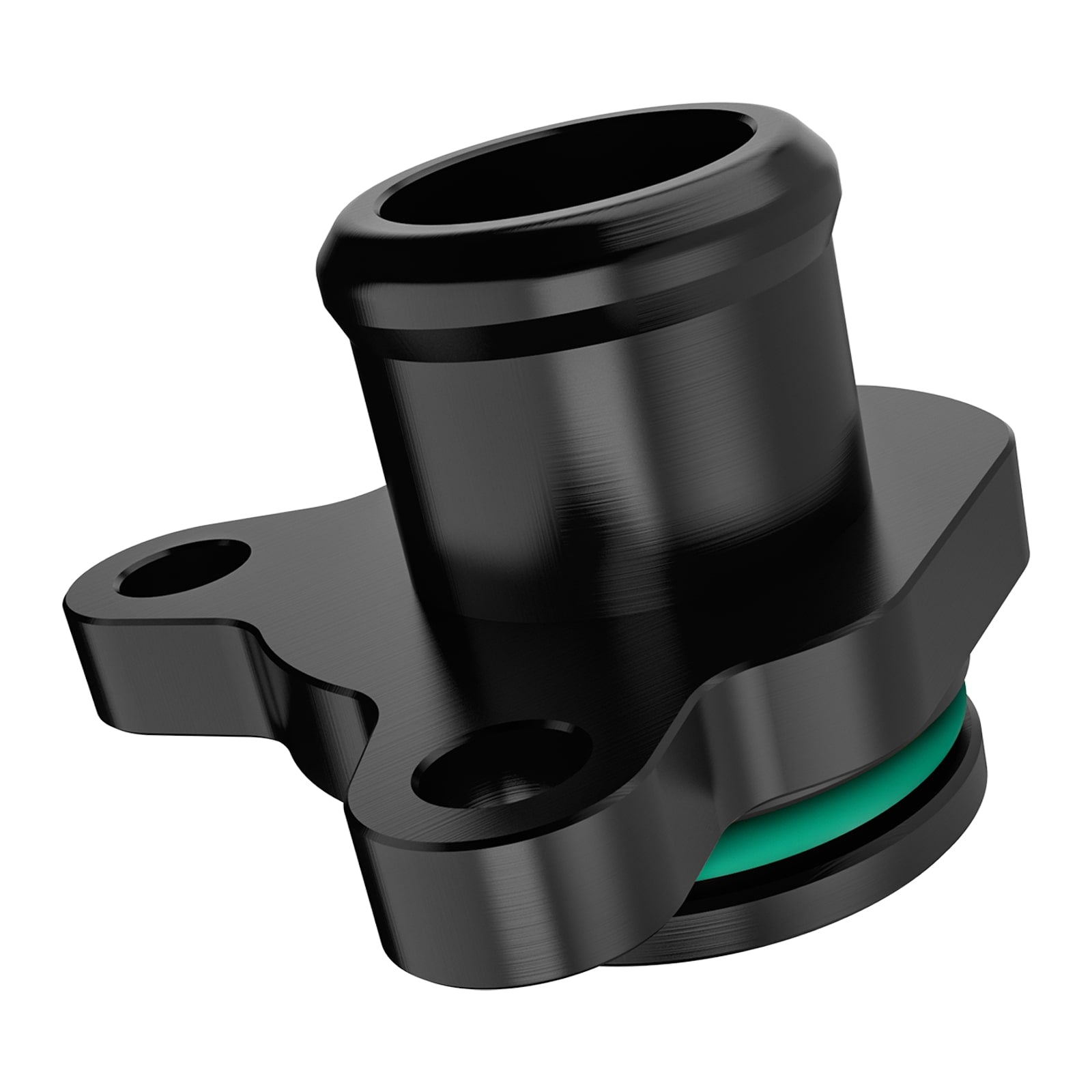

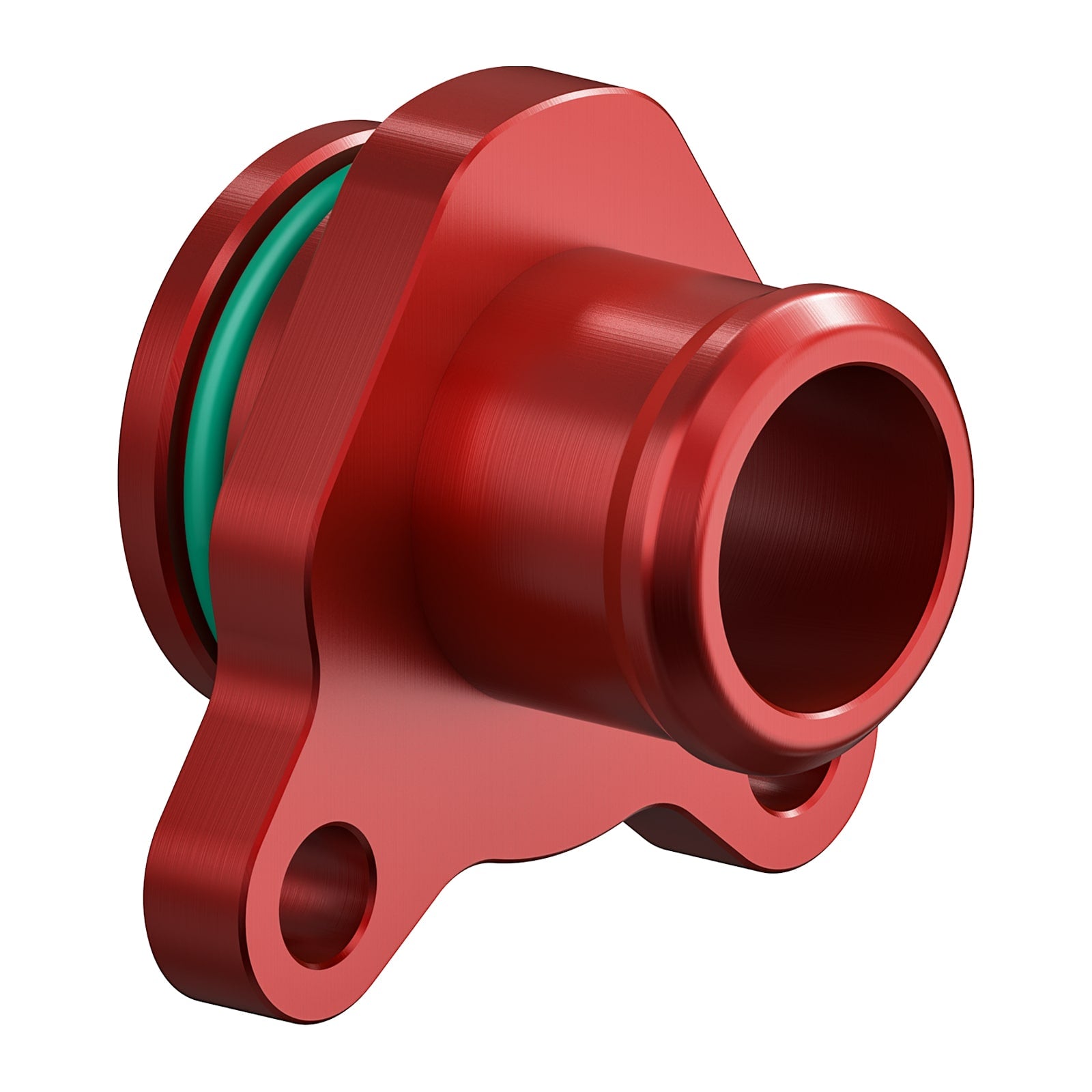

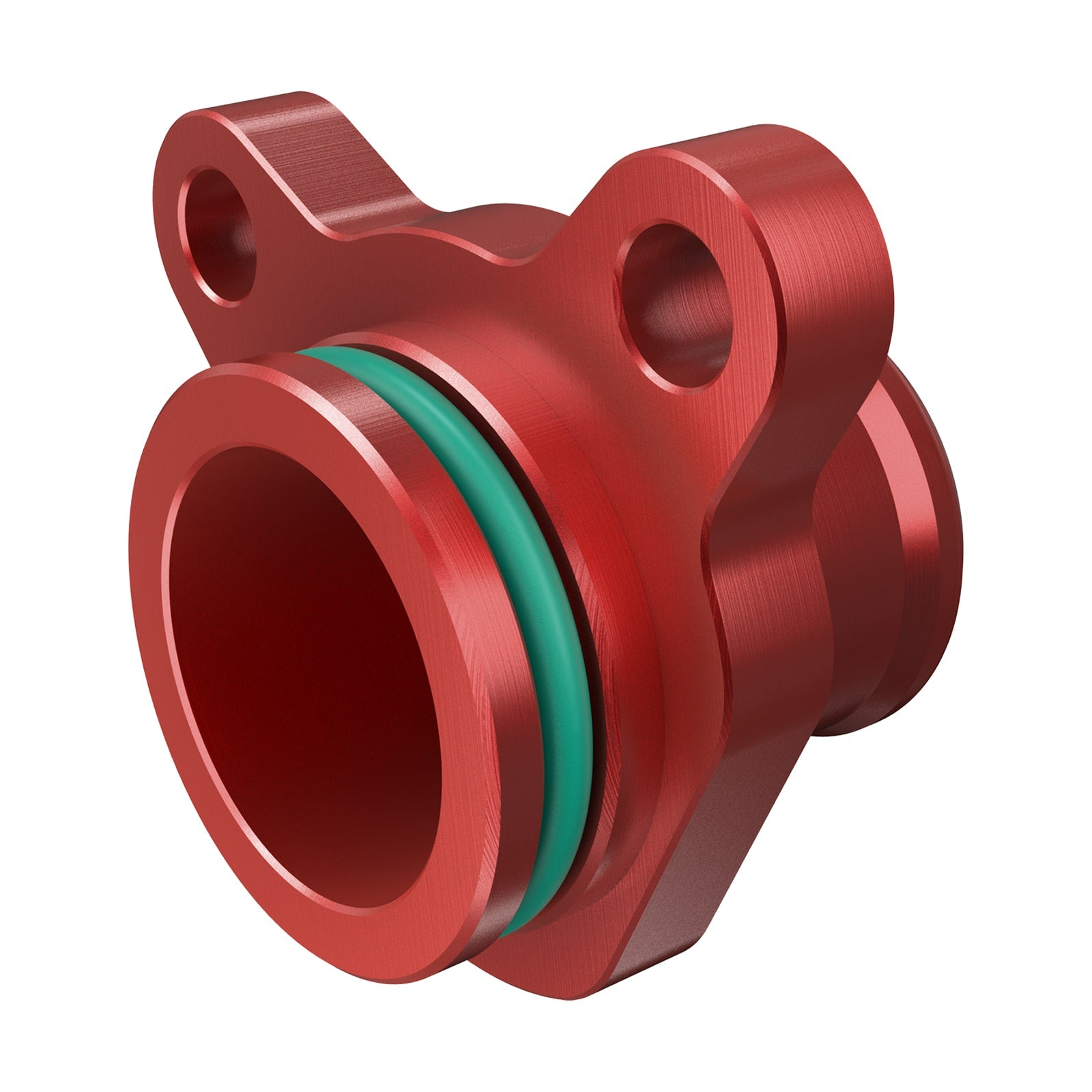

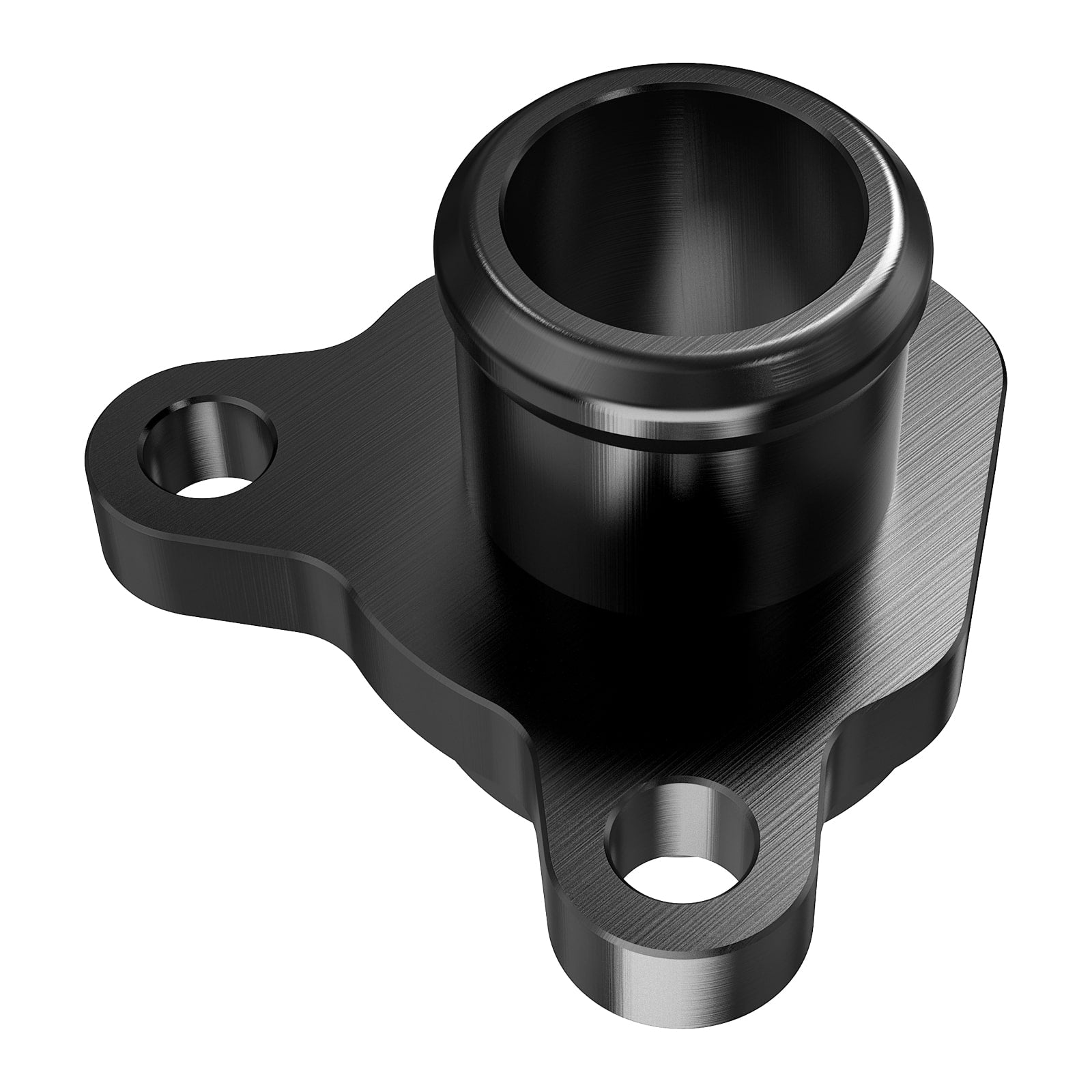

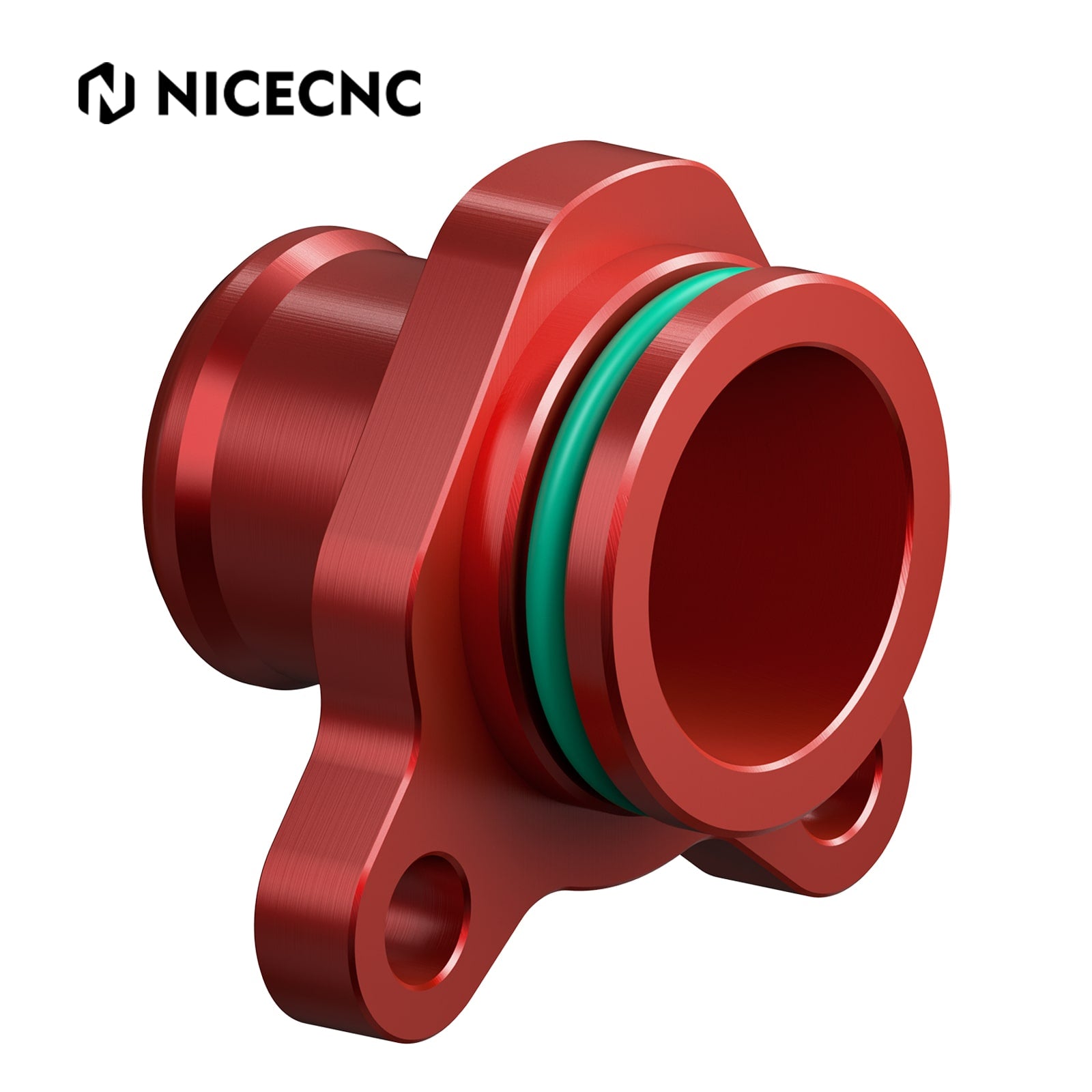

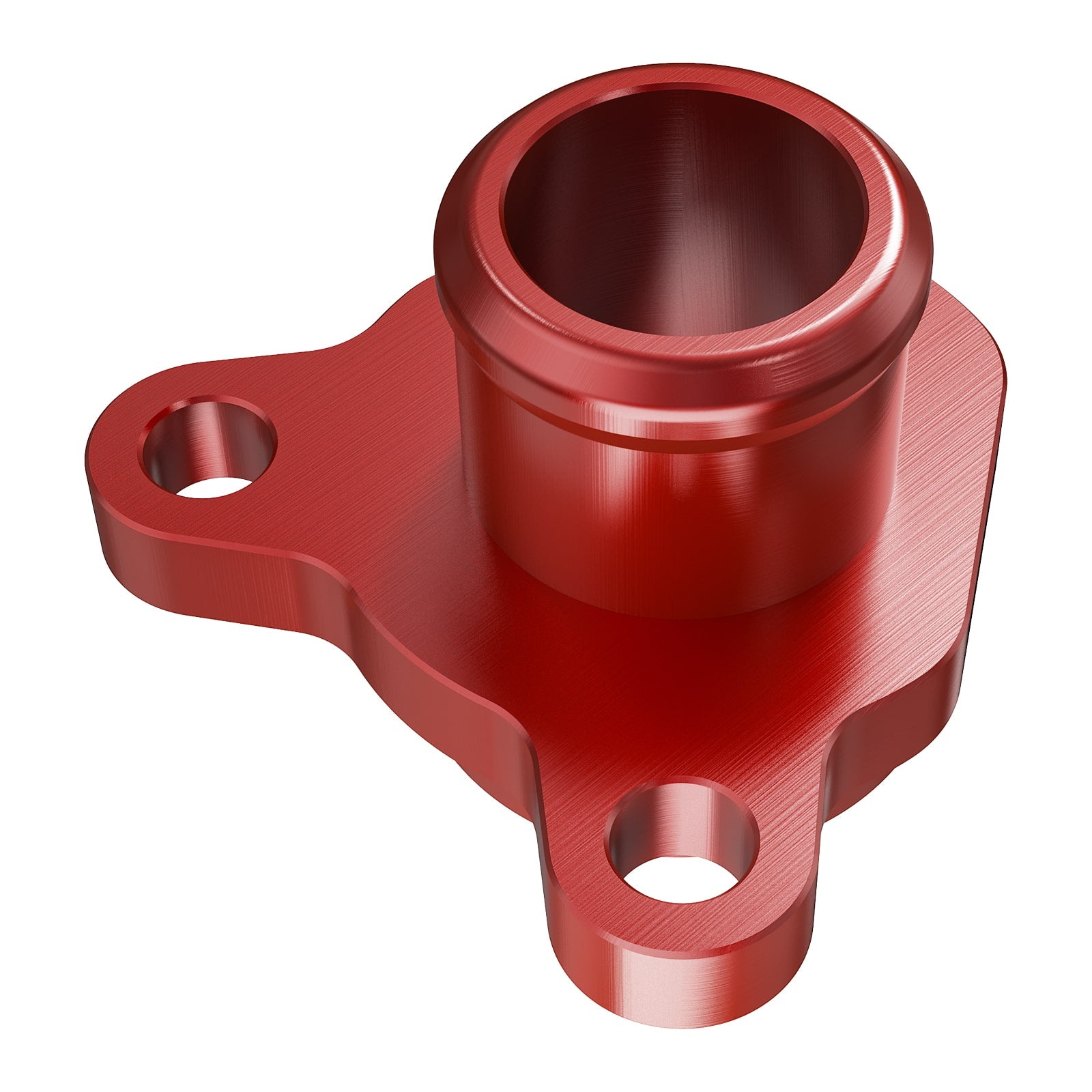

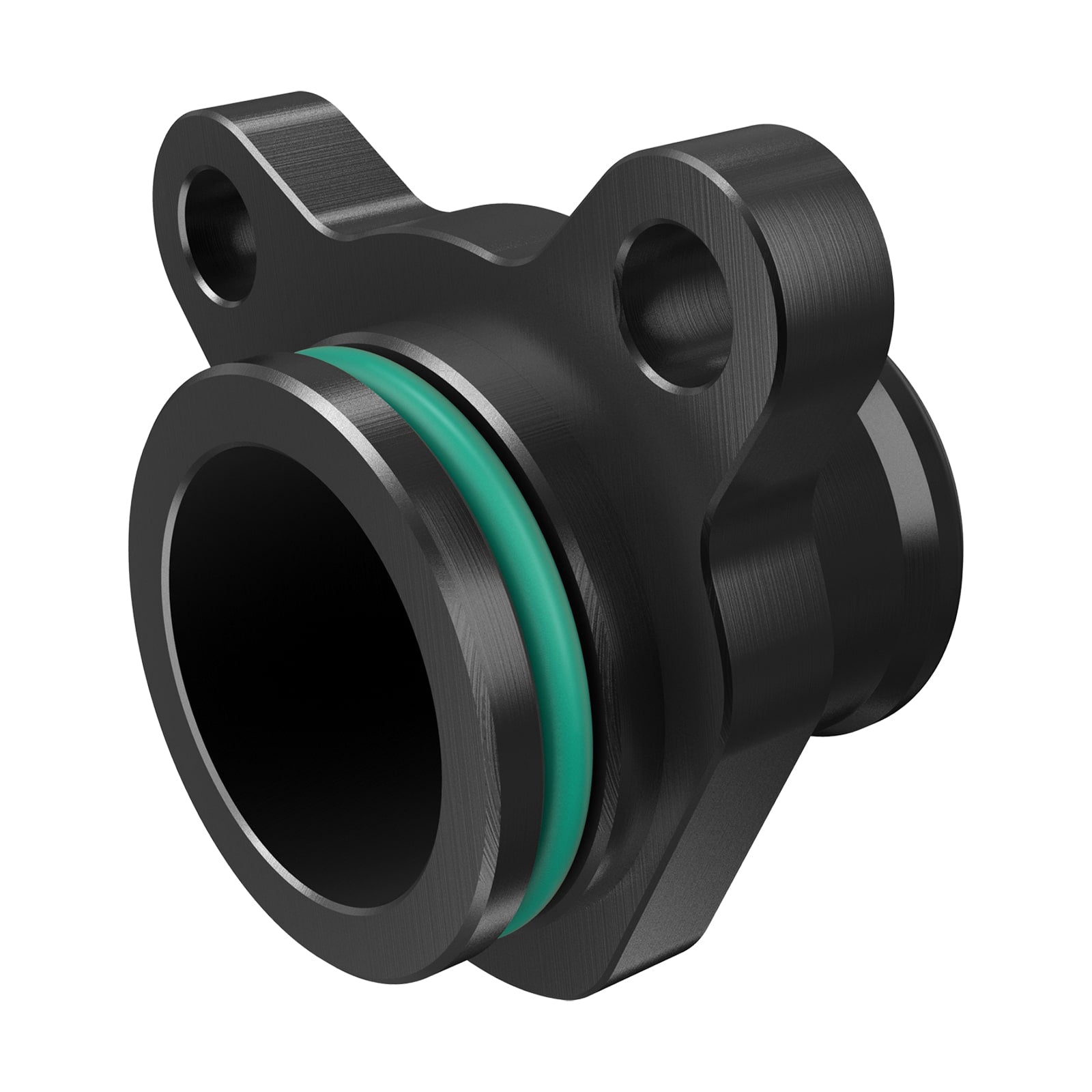

Billet Aluminum Coolant Port Fitting Upgrade for BMW
Billet Aluminum Coolant Port Fitting Upgrade for BMW
Billet Aluminum Coolant Port Fitting Upgrade for BMW
Billet Aluminum Coolant Port Fitting Upgrade for BMW
Billet Aluminum Coolant Port Fitting Upgrade for BMW
Billet Aluminum Coolant Port Fitting Upgrade for BMW
Billet Aluminum Coolant Port Fitting Upgrade for BMW
Billet Aluminum Coolant Port Fitting Upgrade for BMW
Billet Aluminum Coolant Port Fitting Upgrade for BMW
Billet Aluminum Coolant Port Fitting Upgrade for BMW
Billet Aluminum Coolant Port Fitting Upgrade for BMW
Billet Aluminum Coolant Port Fitting Upgrade for BMW

Billet Aluminum Coolant Port Fitting Upgrade for BMW

$12.00 $19.90
Save 40%
SKU: 9121073501
Color:Black
Quantity:

Features:

  • Some of the biggest issues when owning a BMW can come from cooling system components. Even through years of improvement, the same failure is seen with the plastic fittings and adapters from years of hot to cold temperature fluctuation. The N54 engine sees failure at the plastic cylinder head outlet adapter connecting the cylinder head to the thermostat hose. The stock plastic adapter simply shears off at the end of the barbed fitting, creating a massive coolant leak.
  • 【Perfect Replacement】The OEM hose fitting is a known weak spot in the coolant system as it commonly cracks and leaks. Our upgraded water hose fitting is to replace the stock fitting with aluminum that will never wear out, crack or leak.
  • 【Aircraft-grade 6061 Aluminum】Made of 6061 Billet Aluminum instead of plastic,which is durable and wear-resistant.
  • 【Smooth Flow】There are no sharp corners on this fitting so that the coolant will not be disrupted as it passes through.
  • 【Max Coolant Flow】Our aluminum fitting has a larger diameter than the OEM part which improves the coolant flow and cooling performance.
  • 【Easy to Install】Direct fitment with no modification, easy installation.


Item Specifics:

  • Brand: NICECNC
  • Type: Water Hose Fitting
  • Bottle Bracket Material: Billet aluminum
  • Surface Finish: Anodized
  • Replaces part numbers: 11537649409, 11537605152, 11537603514, 11537598234, 11537592095, 11537591889, 11537585023, 11537584549, 11537581063, 11537580969, 11537578727, 11537566329, 11537560363, 11537552339, 11537550062, 11537545890, 11537541992，11537603514


Package Included:

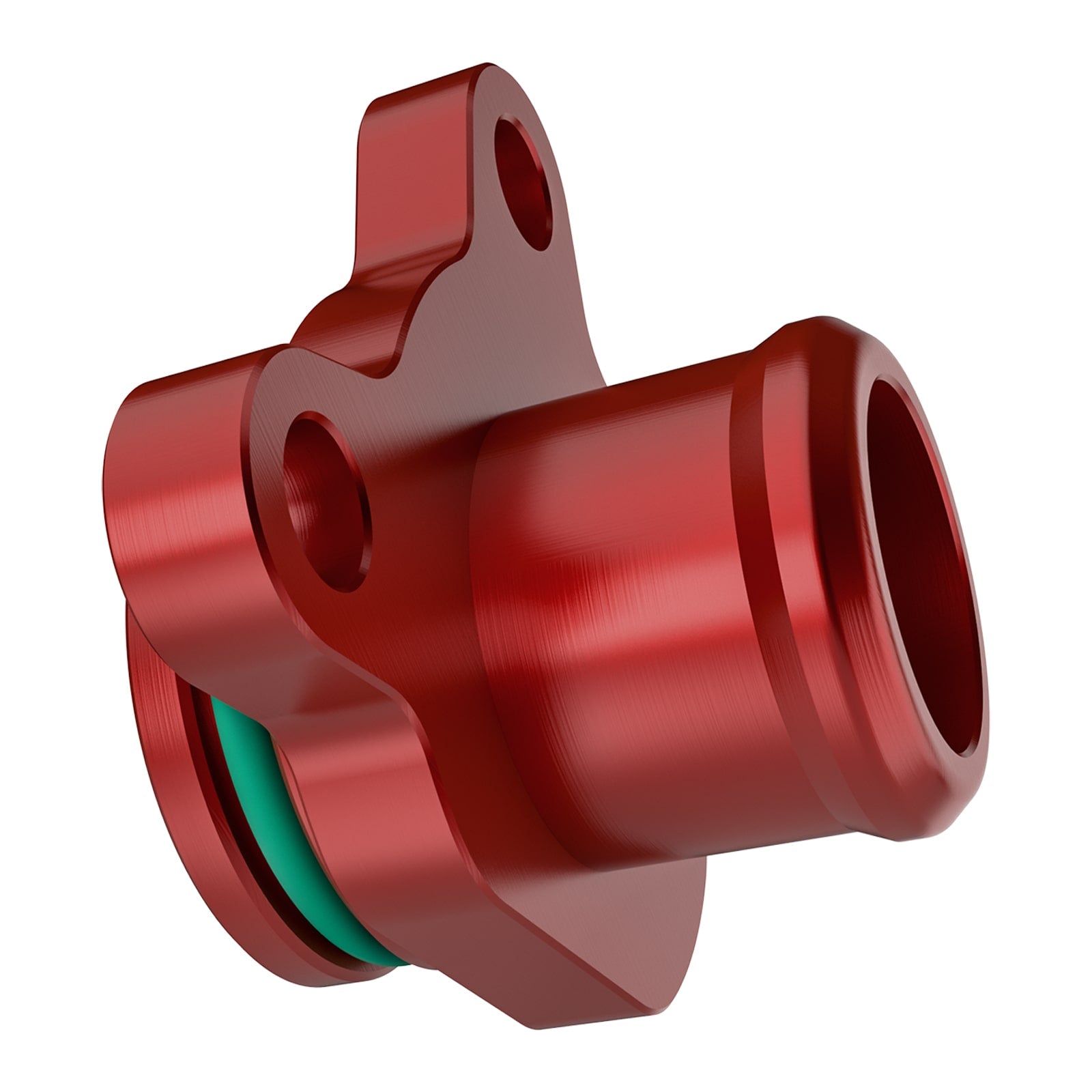

  • Billet Aluminum Coolant Port Flange Fitting
  • Heavy-duty o-ring

Installation Tips:
Remove two 10mm bolts.
Remove the old fitting from the engine block. The O-ring needs to be removed as well as it may get stuck inside.
Clean the outlet on the engine block. Remove any remaining pieces from the coolant hose.
Install the new fitting. Lubricate the seal O-ring before installation. Tighten the two 10 mm bolts.
Slide the coolant hose on the outlet port. Tighten the clamp.

Note:

N55 engines need using a slightly thinner O ring to install.
If a replacement o-ring is needed for future use please see p/n 11537545278（29x2.9mm）

Engine Fitment:
For BMW N20/N26/N51/N52/N54/N55 Engines

Vehicle Fitment:
For BMW 1 Series E81/E82/E87/E88 125i 128i 130i 135i 135is 1M 2008-2013
For BMW 1 Series F20/F21 125i 2012-2015
For BMW 1 Series F20/F21 M135i 2012-2016
For BMW 2 Series F22/F23 220i 228i M235i 2014-2016
For BMW 3 Series E90/E91/E92/E93 323i 325i 328i 330i 335i 2005-2012
For BMW 3 Series F30/F31/F34 320i 328i 335i 2012-2015
For BMW 4 Series F32/F33/F36 420i 428i 435i 2013-2016
For BMW 5 Series E60/E61 523i 525i 528i 530i 535i 2005-2010
For BMW 5 Series F10/F11 520i 523i 528i 530i 535i 2010-2016
For BMW X1 Series E84 16i 20i 25i 28i 35i 2009-2015
For BMW X3 Series E83 25i 30i 2006-2010
For BMW X3 Series F25 20i 28i 35i 2011-2017
For BMW X4 Series F26 20i 28i 35i M40i 2014-2018
For BMW X5 Series E70 30i 35i 2007-2013
For BMW X5 Series F15 35i 2013-2018
For BMW X6 Series E71 35i 2008-2014
For BMW X6 Series F16 35i 2015-2019
For BMW Z4 Series E85/E86 25i 30i 2006-2008
For BMW Z4 Series E89 18i 20i 23i 28i 30i 35i 2009-2016
